Remote High-resolution, Multi-Display Controller

By making use of new virtualization technology (ExpEther), ERG104 realizes a High-resolution and Multi-display controller system over 10Gb Ethernet.

High resolution and multi-monitor display system controlled by remote host several km away Highly-reliable display system by virtualization technology (ExpEther) Remote display terminal does not need any PC, OS nor HDD Display functions are easily customized by EGC601 graphic controller

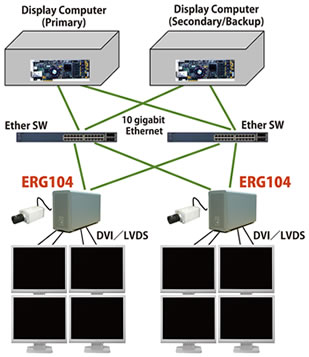

Large scale information display systems in factory, traffic control center, electric power control center, etc. Fault tolerant information display system Thin client terminal without CPU／HDD／OS

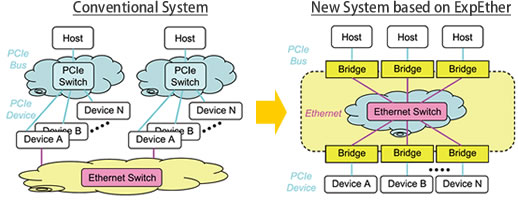

ExpEther technology is originally proposed by NEC By expanding bridge capability, Hot-Plug, Plug & Play, retransmission and multi-route communication capabilities are realized. Euphonic Technologies places an emphasis on developing graphic controller functions
10Gbps optical interface: 2port、SFP+ tranceiver Video output: DVI-D(Digital) x4, (LVDS 24/30-bits) Display resolution: 2 screens/1920×1080@60fps 　～4 screens/1Mpixel@60fps Video input: DVI-D(Max. resolution 1080i/720p) Other interfaces: RS-232C（UART、SPI、I2C）
